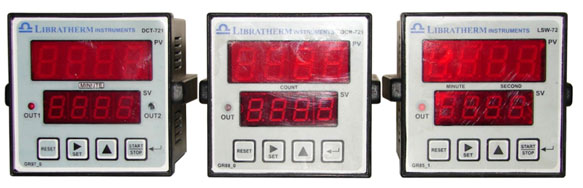

Microcontroller Based Timers / Counters / Stop Watch

Model	Product Description	Size (mm.)
DCT-721	Micro controller based Counter	72 x 72 x 65
DTR-721	Micro controller based Timer	72 x 72 x 65
LSW-72	Micro controller based Stop Watch	72 x 72 x 65

Technical Specifications For Model DCT-721 :

Input	Proximity switch / Photo sensor, encoder, potential free contact etc.
Sensor Supply	5 to 24 VDC.
Range	0 – 9999 count. (Up or Down counting – user selectable)
Display	4 digit 0.5” 7-segment Red LED upper display for Actual Count value. 4 digit 0.3” 7-segment Red LED lower display for Set Count value.
Set Point	Single or Dual Adjustable using soft touch keyboard.
Output	Two relays with single change over potential free  contact (5A@230VAC) at the end of the set count.
Remote Start/Stop	Can be provided using potential free contacts.
Memory Back Up	Retention of last count value in the event of power failure.
Supply	SMPS - 100 to 240VAC, 50/60 Hz.
Size	72 x72 x 65 mm.
Enclosure	ABS plastic with polycarbonate front.

Technical Specifications For Model DTR-721 :



Time Resolution	0.01Sec (10mS), 0.1Sec (100mS) , 1 Sec / Min / Hour – user programmable.
Time Base	Using high frequency quartz crystal.
Range	0 – 9999 time count
Display	4 digit 0.5” 7-segment Red LED upper display for actual time value. 4 digit 0.3” 7-segment Red LED lower display for set time value.
Time Count	UP or DOWN – programmable.
Reset	Using front panel switch
Function/Mode – Programmable	ON delayed (Relay to turn ON after the end of the set time) or OFF delayed (Relay to remain ON till the end of the set time) or CYCLIC – (Relay will remain On and Off as per the programmed time)
Set Point	Single (On/Off delay) or Dual (Cyclic) - adjustable using soft touch keyboard.
Output	Two relays with single change over potential free contact (5A@230VAC) at the end of the set time.
RemoteStart/Stop	Can be provided using potential free contacts.
Memory Back Up	Retention of last count value in the event of power failure.
Supply	SMPS - 100 to 240VAC, 50/60 Hz.
Size	72 x72 x 65 mm.
Enclosure	ABS plastic with polycarbonate front.

Technical Specifications For Model LSW-72 :

Time Resolution	0.01Sec (10mS), 0.1Sec (100mS) , 1 Sec / Min / Hour – user programmable.
Time Base	Using high frequency quartz crystal.
Range	0 – 9999 mS / Second or 0.00 to 59.59 Minute. Second
Display	4 digit 0.5” 7-segment Red LED upper display for actual time value. 4 digit 0.3” 7-segment Red LED lower display for set time value.
Time Count	UP counting from 0 time .
Function/Mode – Programmable	Stop Watch function to Start the timer, Stop the timer or Reset the Timer using front panel or remote contact switches.
Set Point	Single - Adjustable using soft touch keyboard.
Remote Start/Stop	Can be provided using potential free contacts.
Output	Single relay with single change over potential free contact (5A@230VAC) at the end of the set time.
Supply	SMPS - 100 to 240VAC, 50/60 Hz.
Size	72 x72 x 65 mm.
Enclosure	ABS plastic with polycarbonate front.
