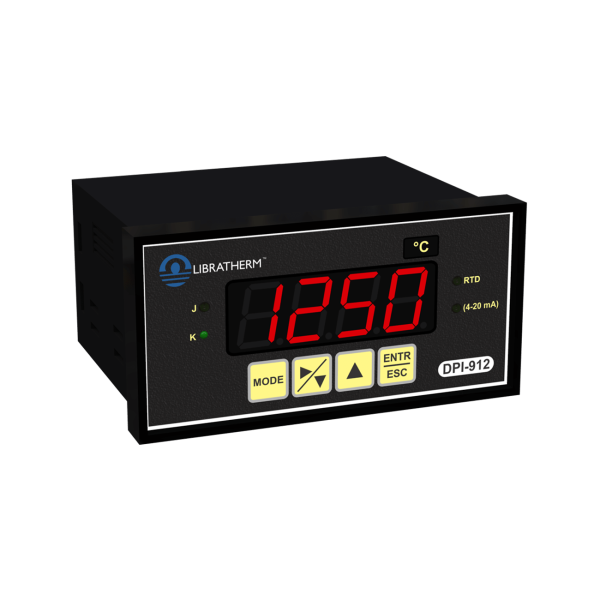

Temperature Indicator – DPI-912

Product Description :

DPI-912 – Temperature and Process Indicator.

Configuration: (1 AI + 1 AO))

Size: 96 x 48 x 75

Part No: 1303

Technical Specification

ParametesDescription
Process Input4-20mA or 0-10V
Display Range-2000 to +2000 or 0 to 4000 count with programmable decimal point
Resolution0.1,0.01,0.001
Temperature InputThermocouple type – J, K, RTD(Pt-100) or R, S, B thermocouple
Temperature RangeAs shown in the Ordering Information table.
Resolution1 °C for thermocouples and 0.1 °C for Pt-100.
Sampling rate / Display rateThe input is read @40mS / the display is updated @1 second.
Indicating Accuracy+/- 1oC for Thermocouple throughout the range and
+/- 0.1oC for Pt-100 for (4-20)mA or (0-10)V - absolute to the linear input signal
Display4 digit 0.33" Red 7-segment display for process variable.
LED Indications for Input type
SettingsUsing Front panel feather touch key board to set various parameters like span HI/LO values,
MODBUS slave ID, Input selection, calibration etc
Retransmission Output (Analog)4-20mA linearized and proportional to the selected input type and range.
Supply(90VAC-250VAC), 50/60 Hz, 18 to 48VAC/DC (optional)
Size96 x 48 x 75
EnclosureABS plastic with polycarbonate front graphic.

Ordering Information



Process Control Instruments

?
Sr. No.SpecificationsPart No.
