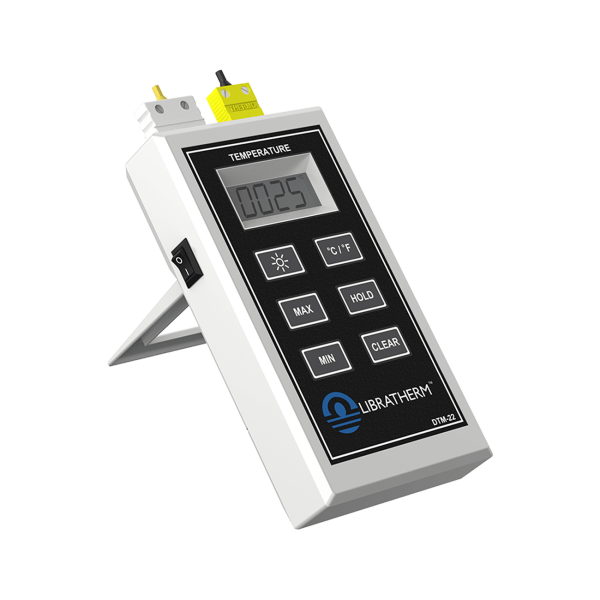

Portable Thermometer – DTM-22-RTD-TC

Product Description :

DTM-22-RTD-TC Thermometer suitable for Pt-100 and Thermocouple probes.

Technical Specifications :

Sensor Input / RangeRefer Input and Range Selection Table.
Accuracy±0.2 °C/°F for RTD (Pt-100) sensor & ±1 °C/°F for Thermocouple sensor.
Resolution0.1°C for RTD (Pt-100) and 1°C for T/C sensor.
Display4 Digit, 0.5" high 7 segments numeric LCD (with Backlit*).
Over range indicationProvided.
Low Battery indicationProvided.
Soft Touch Key padFor °C / °F / Max / Min / Hold / Clear / Back Lit Functions.
CJCBuilt-in Automatic for all types of thermocouples.
Supply9 volts dry cell / 9V AC-DC adaptor.
Serial Interface (Optional)RS232 port for PC interface with additional adaptor (available as additional accessory).
Key SoundMiniature beeper – sounds on Keypress.
Operating / Storage Temperature0-50 °C Max. / 0-70 °C Max. @ 10-85% Rh (Non-Condensing).
Size150 (H) x 82 (W) x 35 (D) mm.
Weight200 gms approx.
EnclosureABS Plastic body with poly-carbonate front and a membrane keyboard.
