Hygro Thermometer – HTM-22

Product Description :

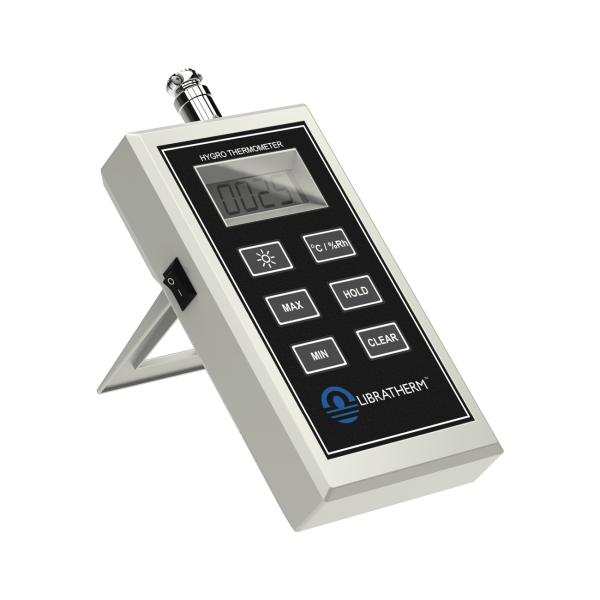

HTM-22 – High Accuracy Industrial Handheld Hygro-Thermometer.

HTM-22-60 Digital Hygro-Thermometer for industrial use up to max 60°C.

HTM-22-80 – Digital Hygro-Thermometer for industrial use up to max 80°C.

Technical Specifications :

T + Rh Sensor / ProbeHygroclip CP (T+Rh) from Rotronic-Swiss (L=200 mm) with 1-meter extension cable and abonite / PVC handle for strong grip.
Temperature Measuring Range-40.0 to +60.0 °C, -20.0 to 80.0 °C
%Rh Measuring Range0.0 to 100.0 %Rh
Accuracy±0.1 °C for temperature and +/-2% for %Rh
Resolution0.1 °C / %Rh
Display4 Digit, 0.5" height, 7 segment numeric LCD.
Display Scan RateEvery 5 seconds for T and Rh (Can be paused by the keypress).
Soft Touch Key padFor °C / %Rh / Max / Min / Hold / Clear / Back Lit Functions.
BatterySingle 9V dry cell or 9V /100mA adaptor (External).
Serial InterfaceRS232 port for PC interface with additional adaptor (available as additional accessory).
Key SoundMiniature beeper – sounds on Keypress.
Over range indicationProvided.
Low Battery indicationProvided.
Size150 (H) x 82 (W) x 35 (D) mm.
Weight200 gms approx.
EnclosureABS Plastic body with polycarbonate front and a membrane keyboard.
