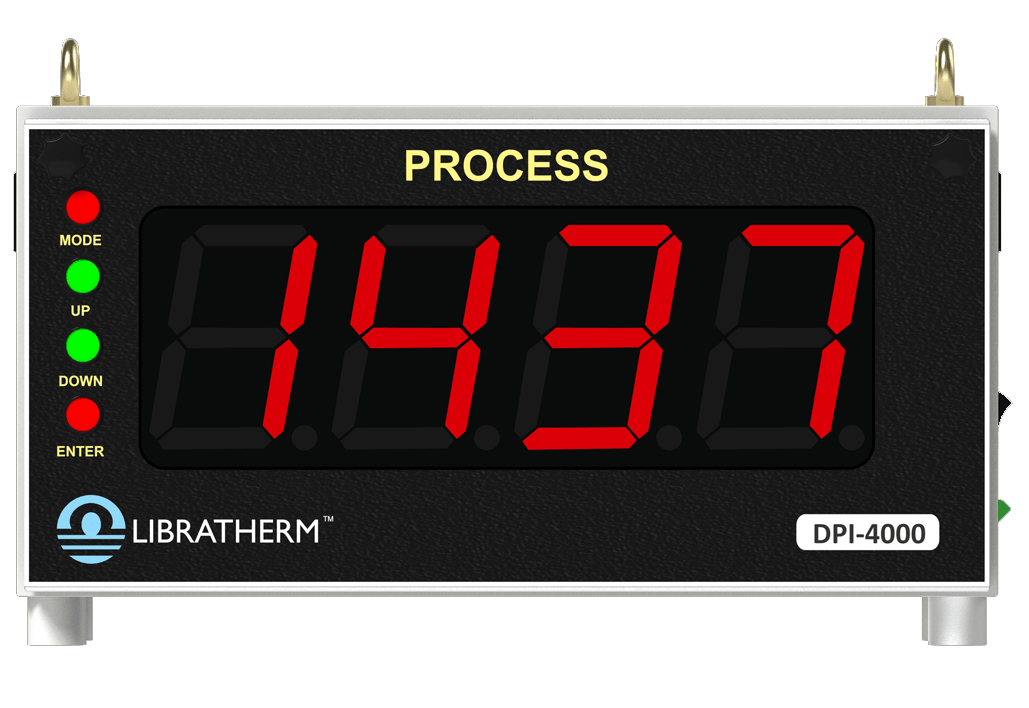

Jumbo Display Temperature Indicator (4 Inch) – DPI-4000-M
Product Description :
DPI-4000-M – Microcontroller based Large Display (4 digit 4” height) Temperature / Process Indicator / Event or Object counter.
Technical Specification
| Design | Based on high speed 32 bit Microcontroller and 16 bit ADC |
| Analog / Digital Signal Input | 1) Thermocouple: J, K, E, T, B, R, S types (any one user selectable) RTD: Pt-100 2 or 3 wire, or Variable Resistance (Any one to specify) Voltage: 0-1V,0-5V,1-5V,0-10V, +/-10V, Current: 0-20mA, 4-20mA, +/-25mA 2) Digital Serial Input: RS-485 over MODBUS RTU protocol. 3) Digital Input: NPN / PNP or potential free contact. |
| Factory Set Input | User may specify at the time of placing order. |
| Display | 4 digit – 4” seven segment red LED display (DPI-4000-M) 4 digit – 1” seven segment red LED display for SET Point / for Unit display (optional) |
| Display Range | Full positive range of thermocouple or Pt-100 and -1999 to 9999 counts for others - user scalable. |
| Decimal Point | User settable through keyboard |
| Calibration Range | User can calibrate or scale the desired range as per requirement using front panel 4 push buttons. |
| Resolution | 1 °C for thermocouple input and 0.1 °C for Pt-100 input. For other process input as per the user requirement. 1 count, 0.1 count, 0.01 count or 0.001 count (user selectable – through front panel push buttons – only for process inputs) |
| Accuracy | +/-0.1% of the specified range for Process Input +/-0.1 °C or +/-1oC for Input from Temperature sensors (Software linearized for T/C and Pt-100 input) |
| Distance between 2 digits | Sufficient to identify each digit from long distance. |
| Aux. Power Supply | 90 to 265VAC, 50/60Hz 25VA / 35VA |
| Settings | Range selection, Calibration and Decimal point selection facility is provided through push button / keys in the front. |
| Re-transmission Output | (4-20)mA Retransmission output proportional to the selected type of input and its calibrated range RL max = 400 Ohm. |
| Serial Interface ports (Optional Feature) | 2 nos. of independent – RS-485 2 wire port – with programmable SLAVE ID Selectable baud rate of: 4800, 9600, 19200, 38400 bps. Parity: odd, even, no parity user selectable. Ports can be configured as Master or Slave as per the application. |
| Relay Output | 2 independent sets of relay change over contacts (NO-C-NC) rated for 5A @ 230VAC (Relay1 and Relay2) |
| Loop Supply | 24VDC @ 100mA to power external loop powered or direct powered transmitters/sensors. |
| Enclosure | Dust free – Metallic powder coated. |
| Size (mm.) | 500(W) x 250(H) x 150(D)- 4” LED display |
| Operating conditions | Temperature: 10 to 60 °C, RH 90% max. (non condensing) |
| Weight | 6.0kg (approx.) |
| Enclosure Color | Standard Siemens gray or User may specify required color for MOQ 10 nos. |
| Mounting | Wall mounting key holes, Ceiling mounted hooks or can be placed on a shelf. |
| Technical Documents | Each display unit will be supplied along with the detail user’s manual, wiring diagram, calibration report and MODBUS protocol – as per the Part No. |
