Signal Isolator with Display – TSC-05

Product Description :

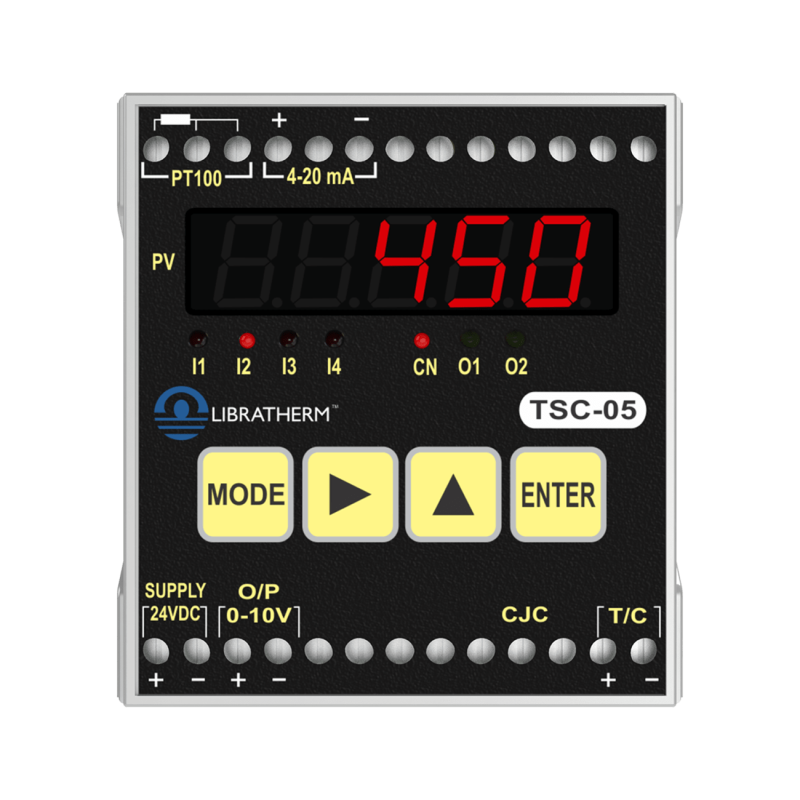

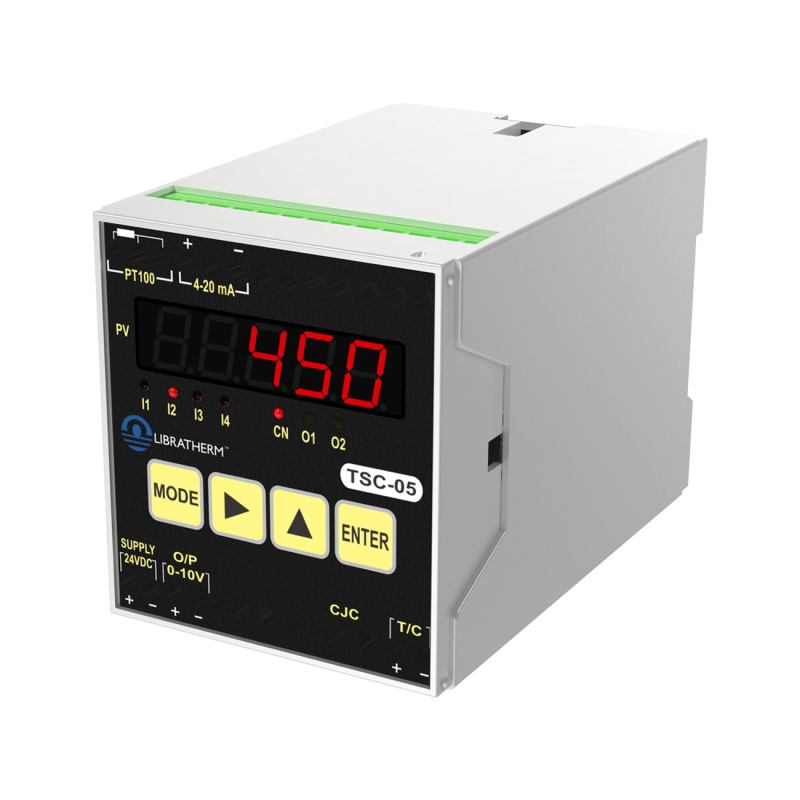

TSC-05 – Microcontroller based Signal Convertor / Isolator Module with 5 digit display.

Request to Quote
  • Accepts universal or fixed DC signal inputs and provides single or dual optically isolated, Proportional and linearized analogue output.
  • Bright red 7 segment LED display.
  • On site calibration and input selection facility-using front panel key board.
  • Operates on 24VDC power supply.
  • DIN rail mounting.
ParametersDescription
InputThermocouple types J,K,T,E,R,S,N and RTD (Pt-100) and 4-20mA (User selectable) – processed using 16bit ADC
Display5 digit 0.3” red 7 segment LED display
RangeDisplay range is subject to the selected input.
AccuracyFor thermocouple and RTD inputs the software linearization is done for +/-1 or +/-0.1 °C indicating accuracy. For other input the accuracy is absolute to the input.
Output(4-20) mA, (0-5) VDC, (0-10) VDC proportional to the specified input range.
For current output, RL (max.) = 400 Ohms.
For voltage output, RL (min) = 100K Ohms.
Processed using 12 bit DAC.
No. of OutputsMaximum 2 parallel independent outputs can be provided for single input.
Each output can be of same or different type.
Response TimeLess than 50 mS.
Cold Junction CompensationAutomatic CJC for Thermocouple Input using built in IC sensor.
CalibrationOn site calibration facility through front panel keyboard.
Open sensor indicationProvided.
IsolationInput and Output are optically isolated for DC inputs.
Three port isolation - Power supply to Input, Power Supply to Output and
Input to Output are isolated from each other.
Isolation VoltageGreater than 1KV AC/DC.
Serial InterfaceRS485 – MODBUS RTU protocol (Optional)
Mounting35-mm. DIN rail mounting ABS enclosure.
Power Supply24VDC +/- 5%. @ max. 150mA
Operating/Storage Temperature0 to 50 °C Max. / 0 to 70 °C @ 10 to 85% RH (Non condensing)
Size70 x 75 x 110 mm. (ABS plastic enclosure - DIN rail mountable)
Input typeRange
J t/c0 to 760 °C
K t/c 0 to 1372 °C
T t/c 0 to 400 °C
E t/c 0 to 1000 °C
R t/c0 to 1760 °C
S t/c 0 to 1760 °C
N t/c 0 to 1300 °C
RTD (Pt-100)0.0 to +400.0 °C
(4-20)mA-9999 to +9999 UOM
Note: User may specify any other input type as per the requirement.
Sr. No.SpecificationsPart No.
Input : 4-20mA/0-5V/0-10V Output : 4-20mA/0-5V/0-10V
1.1Input : 4-20mA, Output1 : 4-20mA,Output2 : RS-485 2010-1-1
1.2Input : 4-20mA, Output1 : 4-20mA,Output2 : 4-20mA2010-1-2
1.3Input : 0-5V, Output1 : 0-5V, Output2 : RS-4852010-1-3
1.4Input : 0-5V, Output1 : 0-5V,Output2 : 0-5V2010-1-4
1.5Input : 0-10V,Output1 : 0-10V,Output2 : RS-4852010-1-5
1.6Input : 0-10V Output1 : 0-10V,Output2 : 0-10V2010-1-6
1.7Input : 0-5V Output1 : 4-20mA,Output2 : RS-4852010-1-7
1.8Input : 0-5V Output1 : 4-20mA,Output2 : 4-20mA2010-1-8
1.9Input : 0-10V Output1 : 4-20mA,Output2 : RS-485 2010-1-9
1.1Input : 0-10V Output1 : 4-20mA,Output2 : 4-20mA 2010-1-10
1.11Input : K TC Output1 : 4-20mA,Output2 : RS-485 2010-1-11
1.12Input : K TC Output1 : 4-20mA,Output2 : 4-20mA 2010-1-12
1.13Input : RTD PT-100 Output1 : 4-20mA,Output2 : RS-4852010-1-13
1.14Input : RTD PT-100 Output1 : 4-20mA,Output2 : 4-20mA2010-1-14
Input : Universal all types, Output : 4-20mA types
2.1Input : Universal Output1 : 4-20mA,Output2 : RS-4852011-1-1
2.2Input : Universal Output1 : 4-20mA,Output2 : 4-20mA2011-1-2
Input : Universal all types, Output : 0-5V types
2.3Input : Universal Output1 : 0-5V,Output2 : RS-485 2011-1-3
2.4Input : Universal Output1 : 0-5V,Output2 : 0-5V2011-1-4
Input : Universal all types, Output : 0-10V types
2.5Input : Universal Output1 : 0-10V,Output2 : RS-4852011-1-5
2.6Input : Universal Output1 : 0-10V,Output2 : 0-10V2011-1-6
Input : Universal all TC type, Output : 4-20mA types
2.7Input : Universal TC Output1 : 4-20mA,Output2 : RS-4852011-1-7
2.8Input : Universal TC Output1 : 4-20mA,Output2 : 4-20mA2011-1-8
Input : Universal all TC type, Output : 0-5V types
2.9Input : Universal TC Output1 : 0-5V,Output2 : RS-4852011-1-9
2.1Input : Universal TC Output1 : 0-5V Output2 : 0-5V2011-1-10
Input : Universal all TC type, Output : 0-10V types
2.11Input : Universal TC Output1 : 0-10V,Output2 : RS-4852011-1-11
2.12Input : Universal TC Output1 : 0-10V,Output2 : 0-10V2011-1-12
