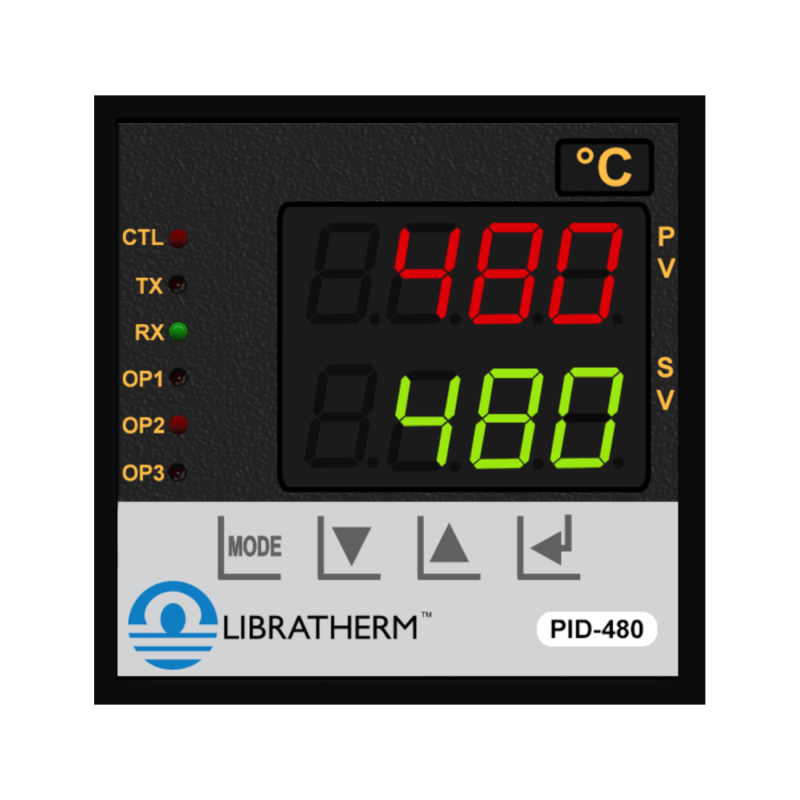

Mini PID Temperature Controller – PID-480
Mini PID Temperature Controller – PID-480
Product Description:
PID-480 – Temperature and Process Controller
Configuration : (1AI + 1AO + 2DO + 1SO)
Size : 48 x 48 x 120
Libratherm offers various models of Digital Temperature and Process PID Controllers. The user has the choice of selecting the model based on the type of Input, type of analog or digital interface, and required size. All the models are designed to suit most of the Industrial applications.
This High-Temperature PID Controller is available in the size of 48 x 48 x 120 mm, accepts input from J, K, R, S, B thermocouple, Pt-100, 4-20mA and provides SSR control output, 4-20mA control Output, 2 relay output, and serial output of RS485 MODBUS interface.
Key Features :
- Microcontroller based Design
- Software linearized for better measurement accuracy
- Field proven PID algorithm
- Works on universal 90-240VAC
- Universal and User selectable input from process transmitters/temperature sensors
- 1 to 4 Relay or SSR or 4-20mA/0-5V/0-10V control Output
- Industrial standard Analog and Digital Interface
| AI | Analog Input from Process transmitter in the form of 4-20mA or from the Temperature Sensors. |
|---|---|
| AO | Analog Output proportional to Analog input, available in the form of Retransmission or PID control output of 4-20mA or optionally 0 -10V |
| DO | Digital Output in the form of relay contacts or SSR DC logic level |
| SO | Serial Output in the form of RS-485 on MODBUS RTU interface. |
| Paramters | Description |
|---|---|
| Process Input (AI) | 4-20mA or 0-10V |
| Display Range | -2000 to +2000 or 0 to 4000 count with a programmable decimal point |
| Resolution | 0.1,0.01,0.001 |
| Temperature Input(AI) | Thermocouple type – J, K, R, S, B RTD type – (Pt-100)/ 2, 3 or 4 wire sensors |
| Temperature Range | As shown in the Ordering Information table. |
| Resolution | 1 °C for thermocouples and 0.1 °C for Pt-100. |
| Sampling rate / Display rate | The input is read @40mS / the display is updated @1 second. |
| Indicating Accuracy | +/- 1 °C for Thermocouple throughout the range and +/- 0.1 °C for Pt-100 for (4-20)mA or (0-10)V - absolute to the linear input signal. |
| Display | 4 digit 0.27" Red 7-segment display for process variable. 4 digit 0.27" Green 7-segment display for set value and PID parameters |
| Settings | Using Front panel feather touch keyboard to set various parameters like Set values, Hysteresis values, Span hi/lo values, MODBUS slave ID, Input selection, calibration, etc. |
| PID Values | Prop. Band (P) = 0.0 to 100.0% of Span, Integral (I) = 0.00 to 5.00 resets/minute, Derivative (D) = 0.00 to 5.00miutes, CYC= 2 to 30sec |
| Control Action | Analog and Switching PID algorithm (Direct or Reverse action as required) |
| PID Control Output | 1.SSR drivers 2.4-20mA/0-5V/0-10V (Any one as per user requirement) |
| Alarm Output | 2 nos. of Relays for event or High/Low Alarms (Contacts are rated for 5A @ 230VAC). |
| Retransmission Output (AO) | 4-20mA linearized and proportional to the selected input type and range RL max = 300 Ohms. |
| Serial Output (SO) | RS485 on MODBUS protocol with programmable slave ID. |
| Supply | (90VAC-250VAC), 50/60 Hz, 18 to 48VAC/DC (optional) |
| Size | 48 x 48 x 120 |
| Enclosure | ABS plastic with polycarbonate front graphic. |
| Sr. No. | Specifications | Part No. |
|---|---|---|
| 1.1 | Input : J,K,Pt-100,4-20mA + SSR control output + 2 relay output | 1501-1-1 |
| 1.2 | Input : J,K,Pt-100,4-20mA + 4-20mA control output + 2 Relay output | 1501-1-2 |
| 1.3 | Input : J,K,Pt-100,4-20mA + SSR + 4-20mA control + 2 Relay output + RS-485 interface | 1501-1-3 |
| 1.4 | Input : J,K,Pt-100,4-20mA + SSR + 4-20mA retransmission output + 2 Relay output | 1501-1-4 |
| 2.1 | Input : R,S,B + SSR control output + 2 relay output | 1501-2-1 |
| 2.2 | Input : R,S,B + 4-20mA control output + 2 Relay output | 1501-2-2 |
| 2.3 | Input : R,S,B + SSR + 4-20mA control output + 2 Relay output + RS-485 interface | 1501-2-3 |
| 2.4 | Input : R,S,B + SSR + 4-20mA Retransmission output + 2 Relay output | 1501-2-4 |
