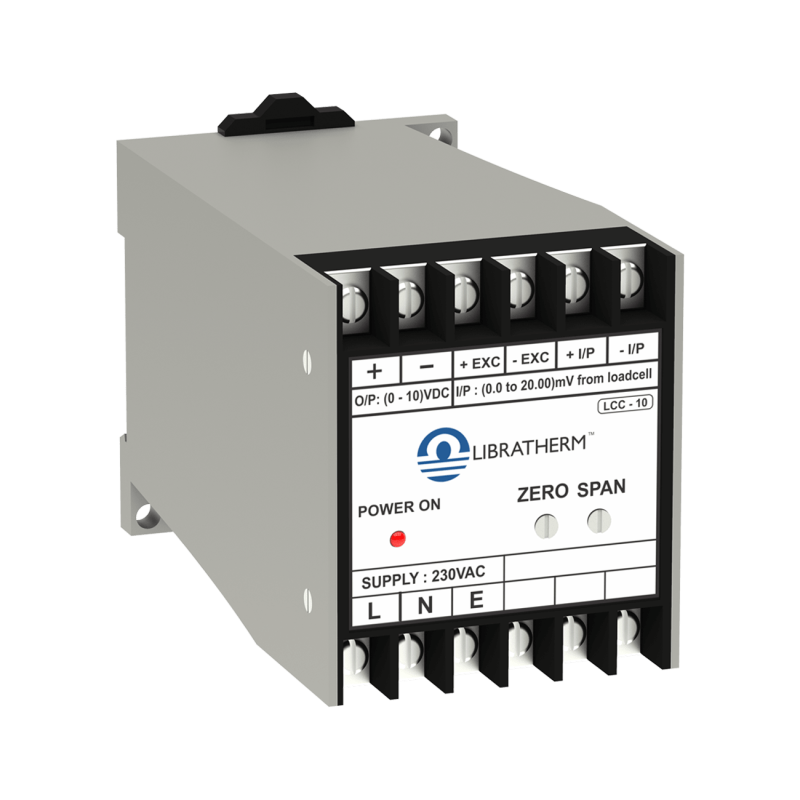

Load Cell Signal Conditioner – LCC-10
Load Cell Signal Conditioner – LCC-10
Product Description :
LCC-10 – Load Cell to (4-20) mA / (0-10) V Converter.
| Parameters | Description |
|---|---|
| Input | Single Load Cell |
| Excitation Voltage | 5 to 12VDC @ max.200mA. Factory set to 10VDC. |
| Output | Average output of all connected load cells in the form of 4-20mA proportional to calibrated range. |
| Output | Average 4-20mA @ RL max = 400 ohms or Average 0-10VDC @ RL min = 10000 Ohms. |
| Accuracy | Absolute to the input. |
| Calibration | On site calibration facility through ZERO and SPAN presets accessible to the user. |
| Isolation | Input and Output are optically isolated - (3 - way isolation). |
| Mounting | 35mm DIN rail mount. |
| Supply | AC Supply: 115VAC or 230VAC, 50/60Hz +/- 10%. (User to specify). |
| Size | (60 x 75 x 110) mm. DIN RAIL Enclosure |
| Sr. No. | Model | Specifications | Part no. |
|---|---|---|---|
| 1.1 | LCC-10 | Input: Single Load Cell Excitation Supply: 10VDC Output: Average 4-20mA Aux Supply : 115VAC | 2038-1 |
| 1.2 | LCC-10 | Input: Single Load Cell Excitation Supply: 10VDC Output: Average 4-20mA Aux Supply : 230VAC | 2038-2 |
| 1.3 | LCC-10 | Input: Single Load Cell Excitation Supply: 10VDC Output: Average 0-10VDC Aux Supply : 115VAC | 2038-3 |
| 1.4 | LCC-10 | Input: Single Load Cell Excitation Supply: 10VDC Output: Average 0-10VDC Aux Supply : 230VAC | 2038-4 |
