Load Cell Signal Conditioner – LCC-04
Load Cell Signal Conditioner – LCC-04
Product Description :

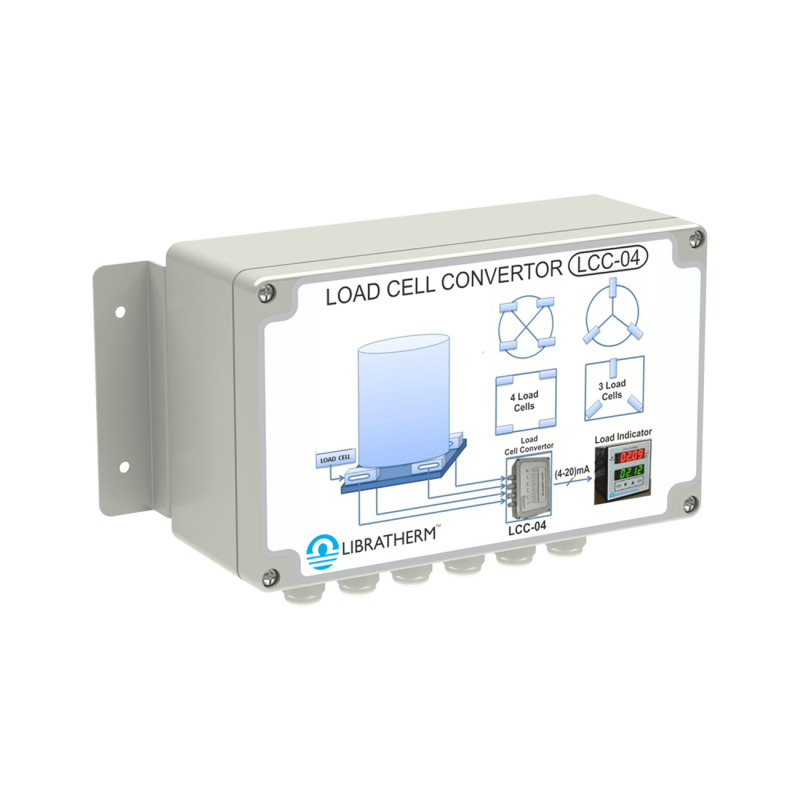

LCC-04 – Load Cell to (4-20) mA / (0-10) V Converter.
| Parameters | Description |
|---|---|
| Input | 1 to 4 Load Cells |
| Excitation Voltage | 5 to 12VDC @ max.200mA. Factory set to 10VDC. |
| Output | Average output of all connected load cells in the form of 4-20mA proportional to calibrated range. |
| Output | Average 4-20mA @ RL max = 400 ohms or Average 0-10VDC @ RL min = 10000 Ohms |
| Accuracy | Absolute to the input. |
| Calibration | On site calibration facility through ZERO and SPAN presets accessible to the user. |
| Isolation | Input and Output are optically isolated - (3 - way isolation) |
| Mounting | Surface mount or wall mount. |
| Supply | AC Supply: 115VAC or 230VAC Or 24VAC/DC +/-10% (User to specify). |
| Size | (200 x 120 x 75) mm. (IP-65 ABS enclosure) |
| Sr. No. | Model | Specifications | Part no. |
|---|---|---|---|
| 1.1 | LCC-04 | Input: 1 to 4 Load Cells Excitation Supply: 10VDC Output: Average 4-20mA Aux Supply : 115VAC | 2039-1 |
| 1.2 | LCC-04 | Input: 1 to 4 Load Cells Excitation Supply: 10VDC Output: Average 4-20mA Aux Supply : 230VAC | 2039-2 |
| 1.3 | LCC-04 | Input: 1 to 4 Load Cells Excitation Supply: 10VDC Output: Average 0-10VDC Aux Supply : 115VAC | 2039-3 |
| 1.4 | LCC-04 | Input: 1 to 4 Load Cells Excitation Supply: 10VDC Output: Average 0-10VDC Aux Supply : 230VAC | 2039-4 |
| 1.5 | LCC-04 | Input: 1 to 4 Load Cells Excitation Supply: 10VDC Output: Average 4-20mA Aux Supply : 24VAC/DC | 2039-5 |
| 1.6 | LCC-04 | Input: 1 to 4 Load Cells Excitation Supply: 10VDC Output: Average 0-10VDC Aux Supply : 24VAC/DC | 2039-6 |
