Product Description:

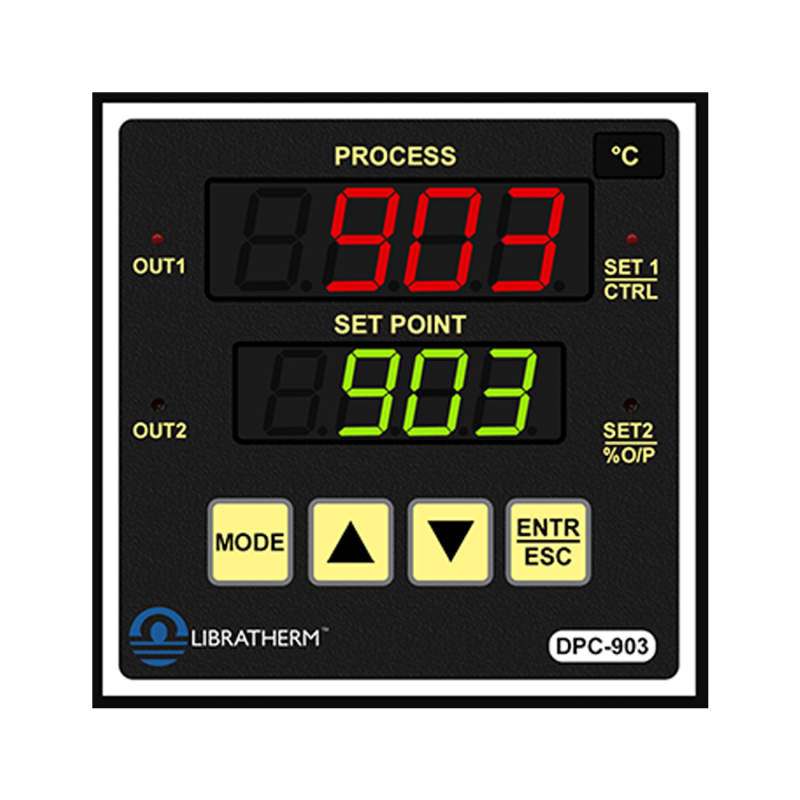

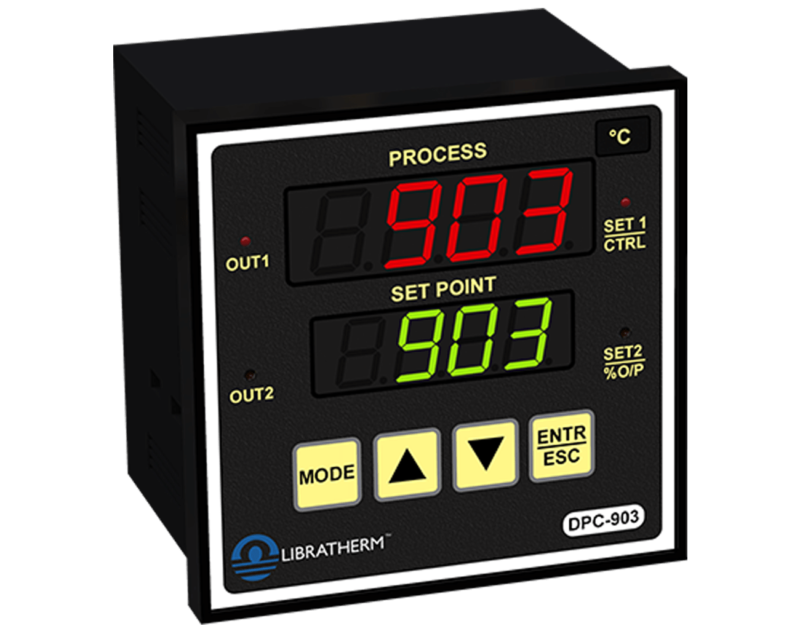

DPC-903 – Temperature and Process Controller
Configuration : (1 AI + 2DO + 1 AO)
Size (mm) : 96 x 96 x 75

Libratherm offers various models of Digital Temperature and Process On/Off Controllers. User has the choice of selecting the model based on the type of input, type of analog or digital interface, and required size. All the models are designed to suit most of the Industrial Applications.

This Digital On-Off Safety Controller is available in the size of 96w x 96h x 75d mm, accepts input from J, K, thermocouple, Pt-100, 4-20mA, and provides 2 relay output or 2 SSR output along with retransmission of 4-20mA.

Key Features :

Microcontroller based Design
Software linearized for better measurement accuracy.
Works on universal 90-240 VAC.
Universal and User selectable input from process transmitters/temperature sensors.
1 to 4 Relay or SSR Output.
Industrial standard Analog and Digital Interface.

AI	Analog Input from Process transmitter in the form of 4-20mA or from the Temperature Sensors.
AO	Analog Output proportional to Analog input, available in the form of Retransmission output of 4-20mA or optionally 0-10V.
DO	Digital Output in the form of relay contacts or 10 to 12 VDC logic level for external SSR.

Parametes	Description
Process Input (AI)	4-20mA or 0-10V.
Display Range	-2000 to +2000 or 0 to 4000 count with a programmable decimal point.
Resolution	0.1,0.01,0.001.
Temperature Input(AI)	Thermocouple type – J, K RTD type – (Pt-100)/ 2, 3 or 4 wire sensors.
Temperature Range	As shown in the Ordering Information table.
Resolution	1 °C for thermocouples and 0.1 °C for Pt-100.
Sampling rate / Display rate	The input is read @40mS / the display is updated @1 second.
Indicating Accuracy	+/- 1 °C for Thermocouple throughout the range and +/- 0.1 °C for Pt-100 for (4-20)mA - absolute to the linear input signal.
Display	4 digit 0.5" Red 7-segment display for process variable. 4 digit 0.5" Red 7-segment display for any other parameters.
Settings	Using Front panel feather touch keyboard to set various parameters like Set values, Hysteresis values, Span hi/lo values, Input selection, calibration, etc.
Control Output (DO)	2 relay outputs (NO-C-NC) contacts rated for 5A @ 230VAC. 2 SSR driver (10 to 12VDC pulse) to drive external SSRs.
On/Off Hysterisis	Programmable through the keyboard in the band of +/-5% of the range or +/-25 °C or +/-10.0 °C or +/- 25 counts.
Retransmission Output (AO)	4-20 mA linearized and proportional to the selected input type and range RL max = 300 Ohms.
Supply	(90VAC-250VAC), 50/60 Hz, 18 to 48VAC/DC (optional).
Size	96 x 96 x 75.
Enclosure	ABS plastic with polycarbonate front graphic.

Sr. No.	Specifications	Part No.
1.1	Input : J,K,Pt-100,4-20mA + 2 relay or 2 SSR output	1406-1
1.2	Input : J,K,Pt-100,4-20mA + 2 relay/SSR output With 4-20mA retransmission	1406-2
