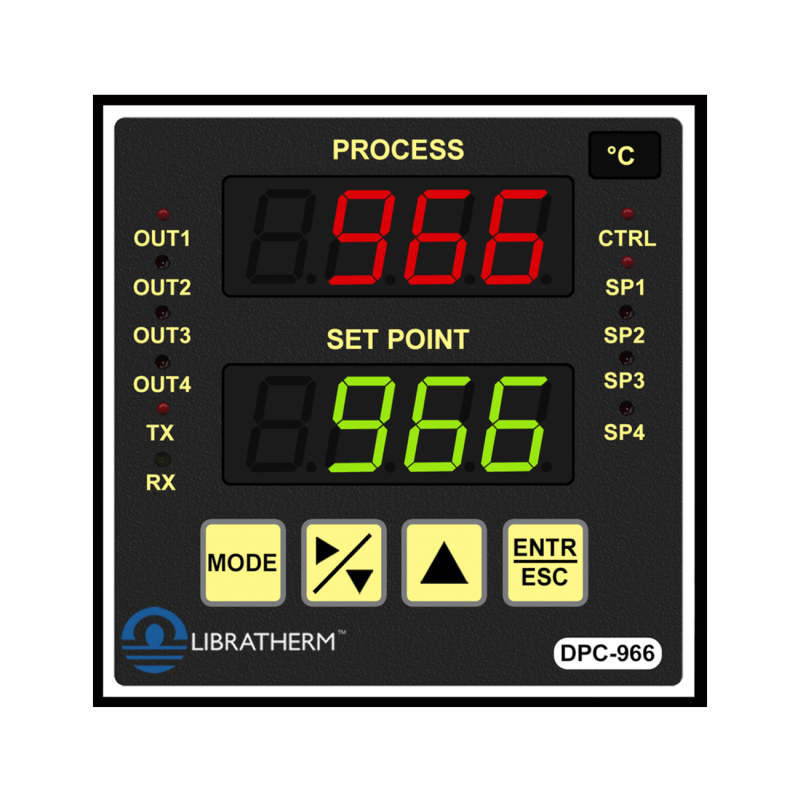

Advanced On-Off Temperature Controller – DPC-966

Advanced On-Off Temperature Controller – DPC-966

Product Description:

DPC-966 – Temperature and Process Controller
I/O Configuration : (1 AI + 1 AO + 2DO + 1 SO) / (1 AI + 1 AO + 4DO + 1 SO)
DPC-966-T : Dual Input Temp and Process Controller
I/O Configuration : (2 AI + 2 AO + 4DO + 1 SO)

Libratherm offers various models of Digital Temperature and Process On-Off Controllers. The user has the choice of selecting the model based on the type of Input, type of analog or digital interface, and required size. All the models are designed to suit most industrial applications.

>DPC-966 (Part No 1402): This On-Off Controller is available in the size of 96w x 96h x 120d mm, accepts input from J, K, R, S, B thermocouple, Pt-100, 4-20mA, and provides 2 relay output and/or 2 SSR output along with retransmission of 4-20mA and serial output of RS485 MODBUS interface.

DPC-966 (Part No 1403): This On-Off Controller is available in the size of 96w x 96h x 120d mm, accepts input from J, K, R, S, B thermocouple, Pt-100, 4-20mA, and provides 4 relay output and/or 4 SSR output along with retransmission of 4-20mA and serial output of RS485 MODBUS interface.

DPC-966-T (Part No 1404): This dual input On-Off Controller is available in the size of 96w x 96h x 120d mm, accepts two input from J, K, R, S, B thermocouple, Pt-100, 4-20mA and provides 4 relay output and/or 4 SSR output along with dual retransmission of 4-20mA and serial output of RS-485 MODBUS interface. Both the Input types are not user-selectable but users need to specify.

Key Features :

Microcontroller based Design
Single input and Two independent input
Software linearized for better measurement accuracy
Available in all standard 1/4 DIN sizes
Works on universal 90-240VAC
Universal and User selectable input from process transmitters/temperature sensors
2 to 4 Relay or SSR Output
Industrial standard Analog and Digital Interface

AI	Analog Input from Process transmitter in the form of 4-20mA or from the Temperature Sensors.
AO	Analog Output proportional to Analog input, available in the form of Retransmission output of 4-20mA or optionally 0-10V.
DO	Digital Output in the form of relay contacts or 10 to 12 VDC logic level for external SSR.

Parametes	Description
Process Input (AI)	4-20mA or 0-10V
Display Range	-2000 to +2000 or 0 to 4000 count with a programmable decimal point
Resolution	1,0.1,0.01, count or Unit of Measurement
Temperature Input(AI)	Thermocouple type – J, K, RTD(Pt-100) or R, S, B t/c
Temperature Range	Full positive standard range for thermocouple or Pt-100 type of input.
Resolution	1°C for thermocouples and 0.1oC for Pt-100.
Sampling rate / Display rate	The input is read @40mS / the display is updated @1 second.
Indicating Accuracy	+/- 1°C for Thermocouple throughout the range and +/- 0.1°C for Pt-100 for (4-20)mA or (0-10)V - absolute to the linear input signal.
Display	4 digit 0.5" Red 7-segment display for process variable. 4 digit 0.5" Green 7-segment display for set value and other parameters.
Settings	Using Front panel feather touch keyboard to set various parameters like Set values, Hysteresis values, Span Hi/Low values, MODBUS slave ID, Input selection, calibration, etc.
Control Output (2DO)	2 relay outputs (NO-C-NC) contacts rated for 5A @ 230VAC. 2 SSR drivers (10 to 12VDC pulse) to drive external SSRs.
Control Output (4DO)	4 relay outputs (NO-C-NC) contacts rated for 5A @ 230VAC 4 SSR drivers (10 to 12VDC pulse) to drive external SSRs.
On/Off Hysterisis	Programmable through keyboard in the band of +/-5% of the range or +/-25°C or +/-10.0°C or +/- 25 counts. (Display Range dependent)
Retransmission Output (AO)	4-20mA linearized and proportional to the selected input type and range, RL max = 300 Ohms.
Serial Output (SO)	RS-485 on MODBUS protocol with programmable slave ID
Supply	(90VAC-250VAC), 50/60 Hz
Size	96 x 96 x 120.
Enclosure	ABS plastic with polycarbonate front graphic.

Model	Specifications	Part No.
DPC-966	Input: J,K,Pt-100,4-20mA + 2 relay/SSR output	1402-1-1
DPC-966	Input: J,K,Pt-100,4-20mA + 2 relay/SSR output + (4-20)mA	1402-1-2
DPC-966	Input: J,K,Pt-100,4-20mA + 2 relay/SSR output + RS-485	1402-1-3
DPC-966	Input : R,S,B + 2 relay and / or SSR output	1402-2-1
DPC-966	Input : R,S,B + 2 relay and / or SSR output + (4-20)mA	1402-2-1
DPC-966	Input : R,S,B + 2 relay / SSR output + RS-485	1402-2-3
DPC-966	Input: J,K,Pt-100,4-20mA + 4 relay/SSR output	1403-1-1
DPC-966	Input: J,K,Pt-100,4-20mA + 4 relay/SSR output + (4-20)mA	1403-1-2
DPC-966	Input: J,K,Pt-100,4-20mA + 4 relay/SSR output + RS-485	1403-1-3
DPC-966	Input : R,S,B + 4 relay and / or SSR output	1403-2-1
DPC-966	Input : R,S,B + 4 relay and / or SSR output + (4-20)mA	1403-2-2
DPC-966	Input : R,S,B + 4 relay / SSR output + RS-485	1403-2-3
DPC-966-T	Input1 & Input2 : User to specify + 4 relay and / or SSR output	1407-1
DPC-966-T	Input1 & Input2 : User to specify + 4 relay and / or SSR output + dual (4-20)mA	1407-2
DPC-966-T	Input1 & Input2 : User to specify + 4 relay / SSR output + RS-485	1407-3
