Single Phase (2 To 8KW) DIN Rail Mount SCR Based Power Regulator

Single Phase (2 To 8KW) DIN Rail Mount SCR Based Power Regulator

Single Phase (2 To 8KW) DIN Rail Mount SCR Based Power Regulator

Product Specification :
Model wise descriptions :

Model Product Description Size (mm.)

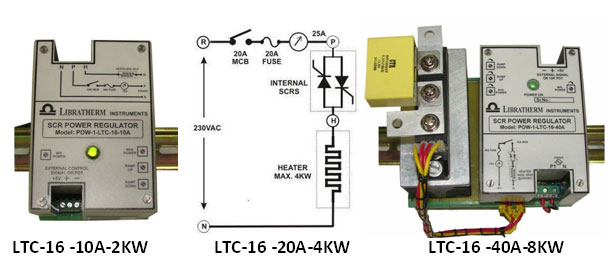

LTC-16-10 Single Phase power regulator for 2KW @ 230VAC load 115 x 80 x 90(10A)
LTC-16-20 Single Phase power regulator for 4KW @ 230VAC load 115 x 80 x 90 (20A)
LTC-16-40 Single Phase power regulator for 8KW @ 230VAC load 115 x 135 x 150 (40A)


Technical Specifications :

Item Single Phase back to back SCR based power regulator
Model LTC-16-XX ( XX = 10A, 20A and 40A)
Control Input (Linear) 0-5V, 0-10V, 4-20mA (DIP switch selectable)
Firing Technique Phase angle control (Self Synchronized).
Supply Voltage
(90 – 240)VAC, 50/60Hz
Output Voltage (Single phase Load) 0 to 230VAC with respect to neutral and proportional to control input. (Maximum level of output voltage depends on the Line voltage)
Load Current 10A to 40A @ 230VAC
Ramp Up/Down and
Max./Min Power

Adjustable using on card single turn presets.
Mounting 35 mm. DIN rail.
Sizes (L x W x H) 115 x 80 x 90 (10A),
115 x 80 x 90 (20A),
115 x 135 x 150 (40A)
