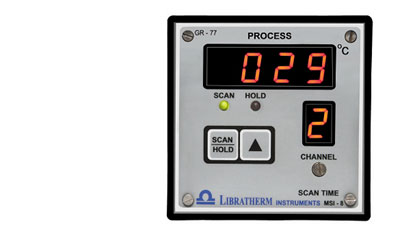

Digital Temperature / Process Scanner

Digital Temperature / Process Scanner

Process Control Instruments

Digital Temperature / Process Scanner

Product Specification :

Model wise descriptions :

Model Product Description Size (mm.)
MSI-8-XX Digital Temperature/Process Scanner (XX = 04,06,08 points) 96 x 96 x 120

Description :

Libratherm offers Digital Temperature / process Scanner Model MSI-8 which is suitable for continuous monitoring of temperature or process values at different locations using single instrument, thereby eliminates the need for number of individual temperature or process indicators and hence saves on cost and panel space. MSI-8 accepts all inputs of the same type and displays the process value sequentially along with the respective channel number. The scan interval is adjustable from 2 to 20 seconds. The facility is also provided to manually pause the scanning and increment the channel manually in HOLD mode.
Other than inputs from temperature sensors this Model can also accept (4-20)mA or (0-5) or (0-10) Volt signals to monitor other process variables like pressure, flow, pH, ORP, AC voltage, AC current, etc.


Features :
• Available in standard ¼ DIN sizes.
• Highly accurate and sturdy in operation
• Elegant looks and Very easy to operate.
• Accepts standard inputs like thermocouple, RTD - Pt-100 2 or 3-wire input, etc.
• Models with 4, 6,& 8 inputs are available.

Application :
• Heat treatment plants, Large tunnel Furnace / Oven
• Transformer oil temperature
• Power plant
• Food processing ovens
• Laboratory equipment.etc.

Technical Specifications :

No of channels 4, 6, 8
Input J, K, thermocouple or RTD(PT-100)/2 or 3 wire or 0-5V, 0-10V, or 4-20mA.
Range Standard ranges as per the table given below – or user can specify the desired range.
Accuracy Better than +/- 0.5 to 1.0 % of the specified range.
CJC Automatic for thermocouple input.
Display 3.5 digit 0.5" 7-segment Red LED for Process Value and
single digit for channel number - Indication
Open Sensor Indication Display shows (1 ) MSD.
Scan Time 2 to 20 Seconds adjustable using front panel potentiometer
Channel Scan / Hold/Advance Selectable using front panel membrane switch.
Supply 230VAC or 110 VAC ± 10% (5VA), 50/60Hz OR 24VDC @ 100mA
Size / Panel cut out 96 x 96 x 120 mm / 92 x 92 mm.
Enclosure Metallic with ABS bezel and polycarbonate front fascia
